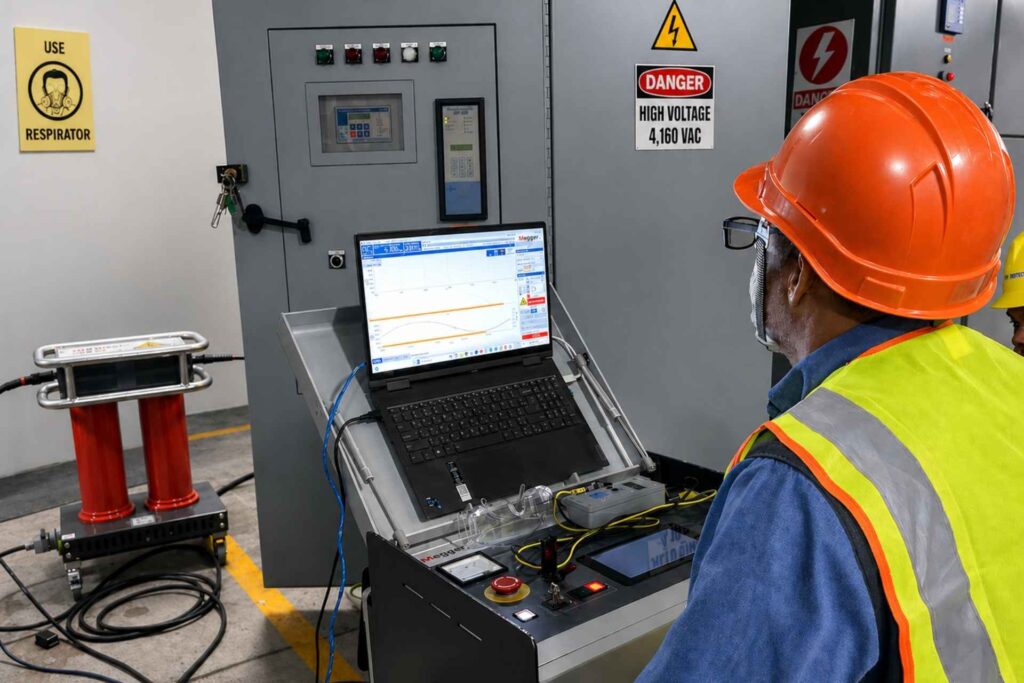

Cable Testing & Diagnostics
Underground medium- and high-voltage cable systems can fail without visible warning. NDTECTOR provides advanced testing and diagnostic services to identify insulation weaknesses, hidden defects, and cable degradation before they lead to costly outages.
Our structured, standards-based approach helps utilities, industrial facilities, contractors, and renewable energy operators make confident, data-driven maintenance and repair decisions.
All testing and diagnostics are performed in accordance with IEEE, IEC, ANSI/NETA, OSHA, and NFPA industry standards and safety practices.

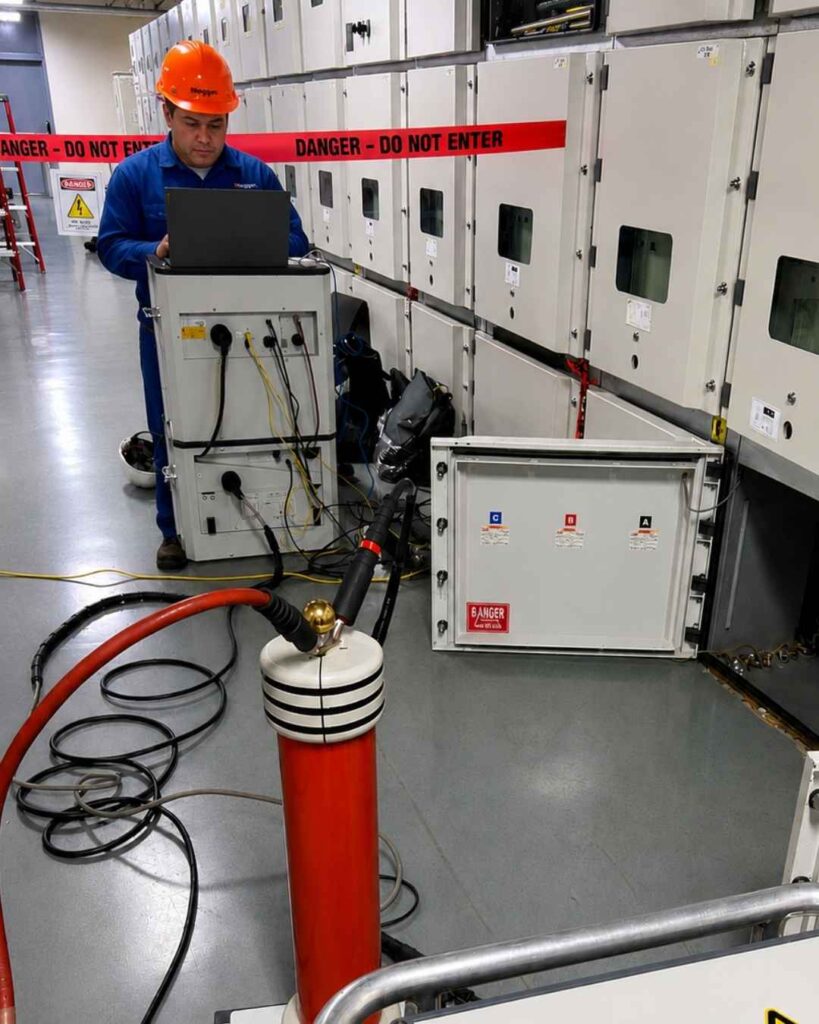

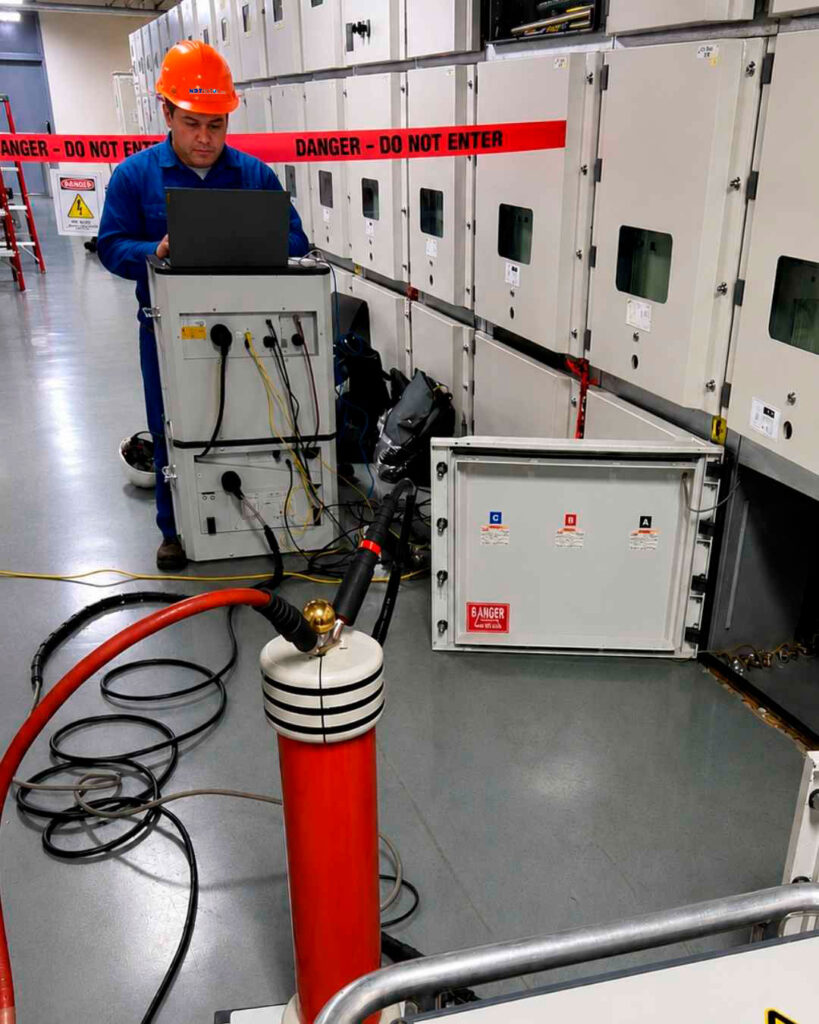

Our Diagnostic Process
1. System Review & Risk Assessment
We evaluate voltage class, cable construction, installation history, and operational concerns to define the appropriate diagnostic scope.
2. Field Testing Execution
We deploy controlled and repeatable testing methods aligned with cable specifications and safety protocols.
3. Data Analysis & Interpretation
Results are analyzed using cable-specific parameters (including velocity of propagation and insulation characteristics where applicable) to ensure defensible findings.
4. Decision-Ready Reporting
Clients receive clear technical reports outlining cable condition, severity indicators, and recommended actions — repair, monitor, or replace.
Each methodology is selected based on voltage level, cable type, length, operating history, and site conditions.
What We Do
We evaluate the true condition and remaining life of MV/HV cable systems using industry-proven testing methodologies, including:

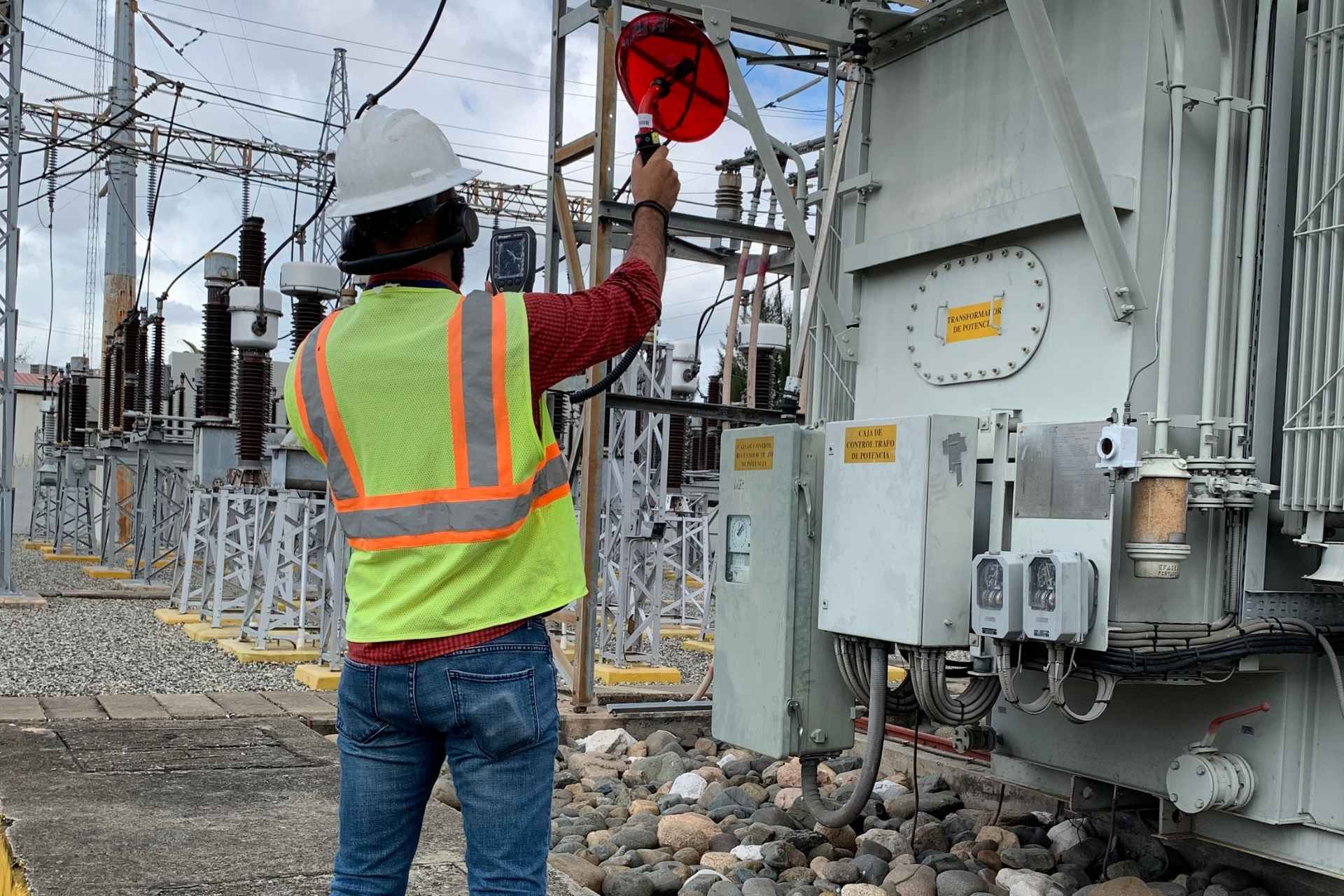

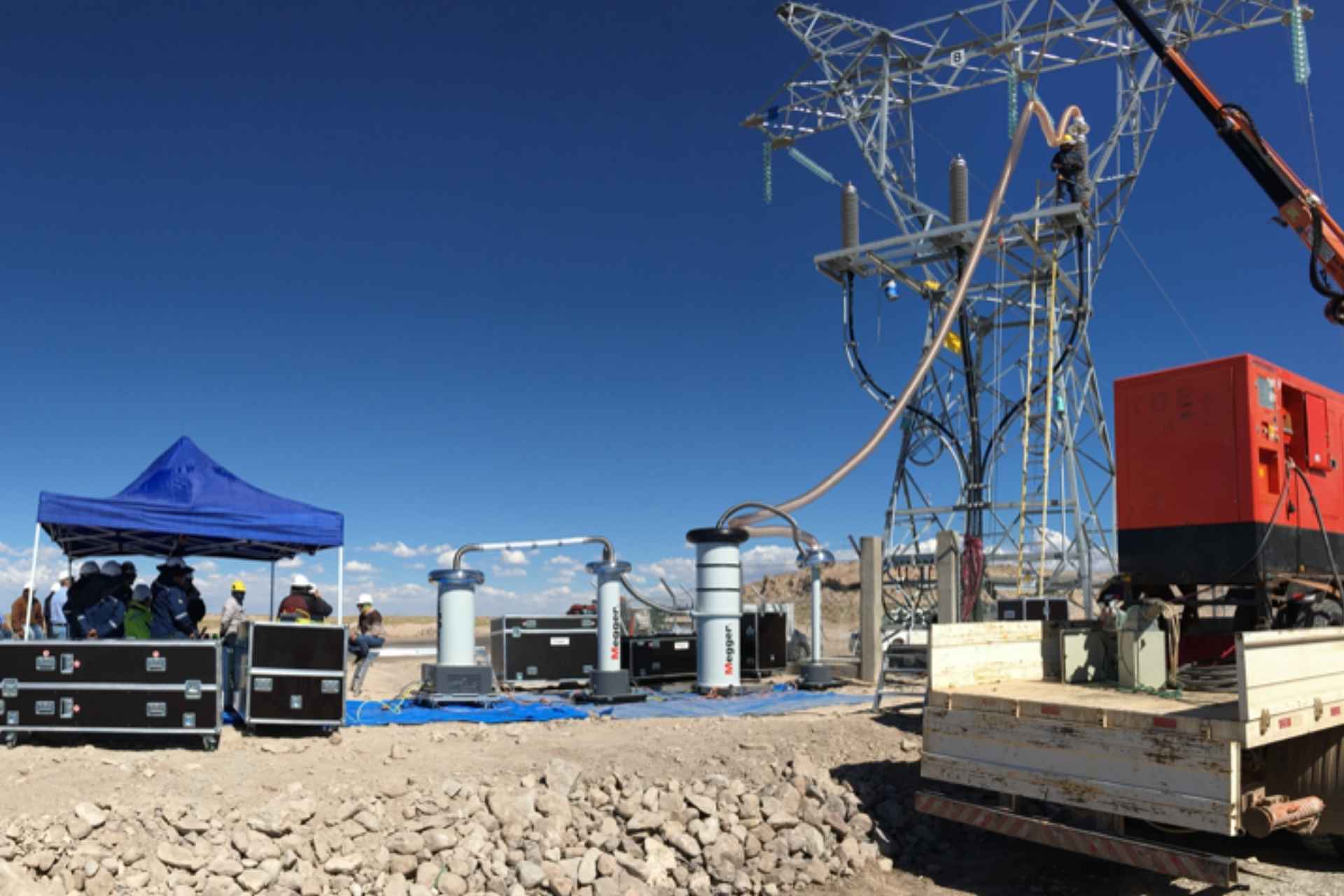

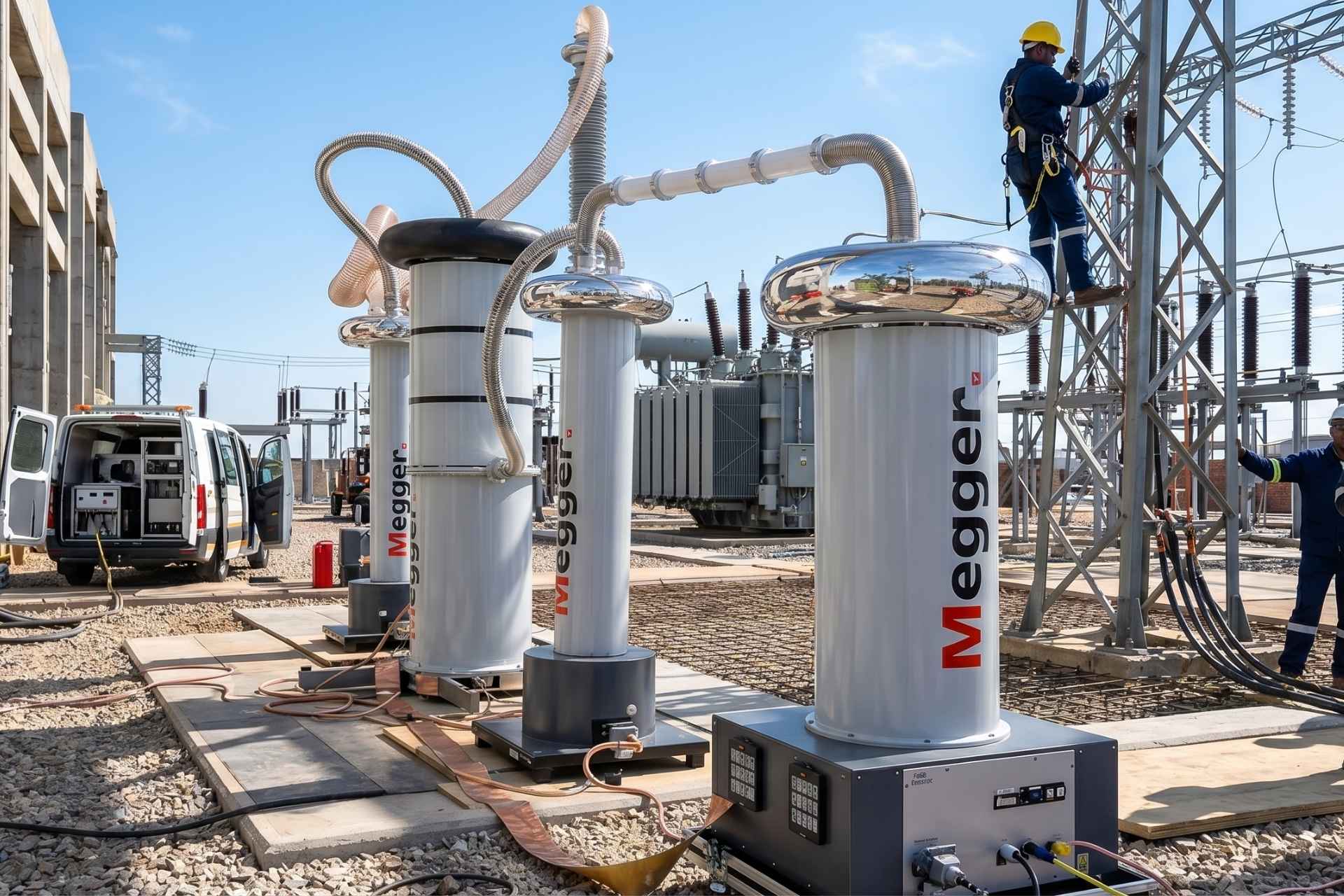

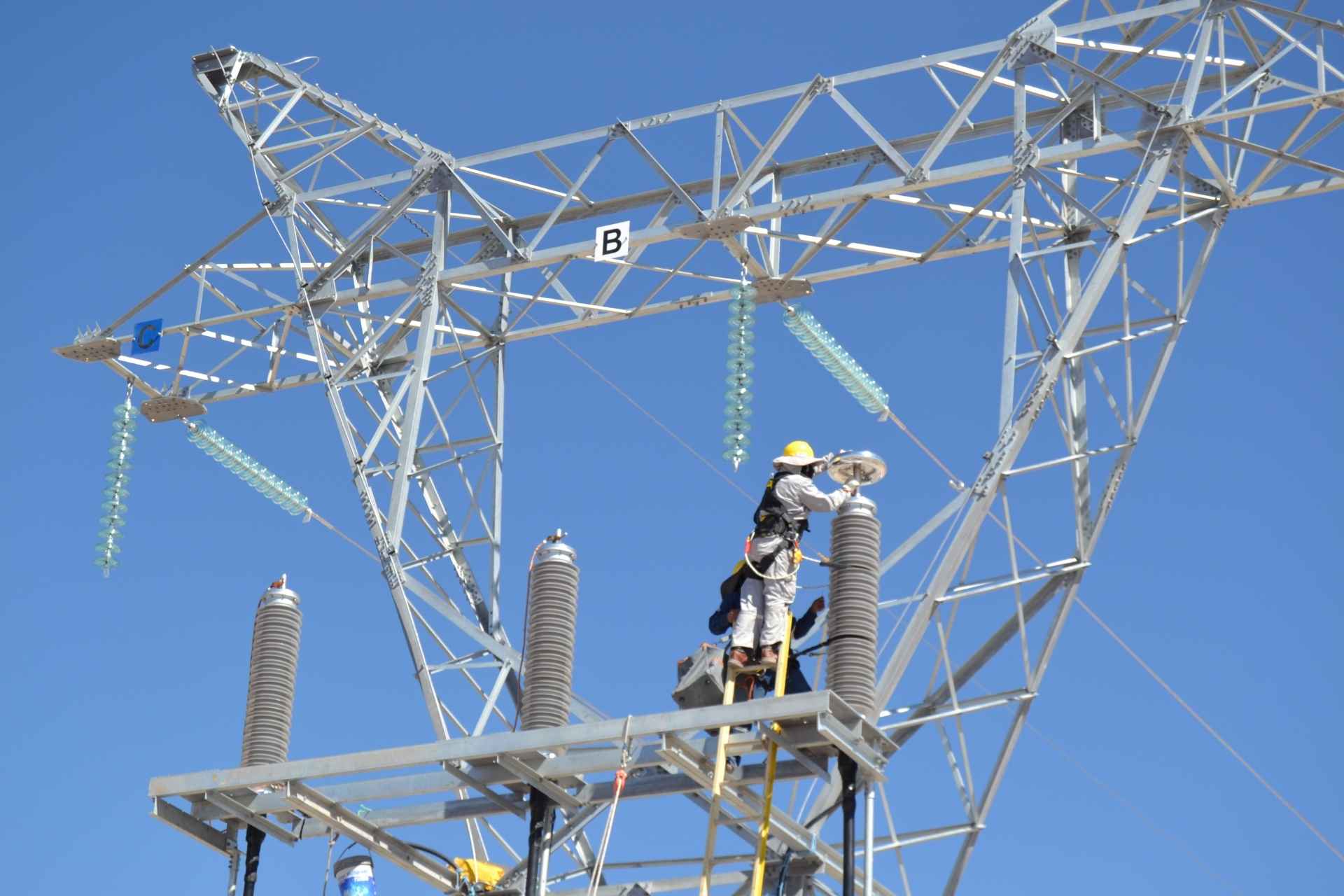

- Insulation Resistance (IR) Measurement
Used as an initial screening or permissive test to verify basic insulation integrity before advanced diagnostics.
- Phase-to-Phase Comparative Reflectometry
Comparison of reflected signals between phases to detect unexpected impedance changes, asymmetries, or developing defects within the cable system.
- Jacket Integrity Testing
Detects outer sheath damage that may allow moisture ingress or accelerated deterioration.
- Tan Delta (TD) Analysis
Evaluates dielectric losses to identify insulation aging and degradation trends. - Offline / Online Partial Discharge (PD) Diagnostics
Detects localized insulation defects that may lead to premature failure. - VLF (Very Low Frequency) & DAC Hipot Testing
Controlled overvoltage testing to assess insulation strength and commissioning readiness.
Why Advanced Diagnostics Matter
Cable systems may appear operational while internal degradation progresses. Advanced diagnostics allow organizations to:
- Detect defects before failure occurs
- Prevent unplanned outages and emergency repairs
- Reduce operational and financial risk
- Prioritize replacements based on data
- Extend the life of critical asset
Instead of reacting to failures, clients gain a proactive strategy backed by measurable technical data.
Who This Service Is For

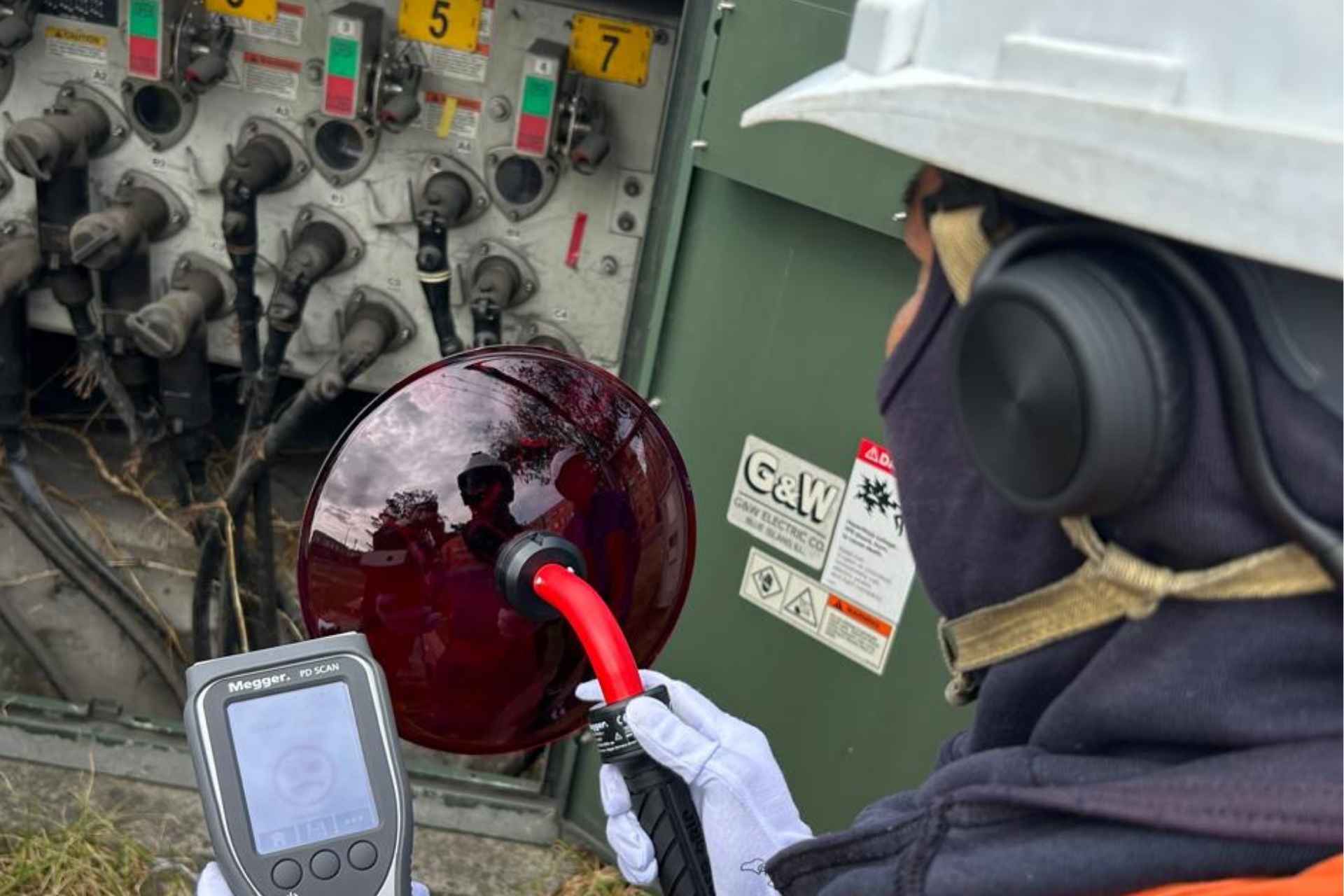

- Electrical Contractors & EPCs requiring commissioning validation
- Utilities and municipal networks managing underground assets
- Industrial facilities protecting uptime and critical infrastructure
- Renewable energy operators seeking reliable MV collection systems
The NDTECTOR Advantage
- Exclusive focus on MV/HV cable systems
- Field-proven diagnostic methodologies
- Independent and objective interpretation
- Clear reporting for engineering and executive decision-making
Our goal is simple: deliver precise, defensible technical insight that helps your team reduce risk and operate with confidence.
Request a Diagnostic Assessment
Need to understand the true condition of your MV/HV cable system?
Tell us about your project or concern, and we will define the appropriate diagnostic path to protect your infrastructure and minimize operational risk.
